Application：

Available Wire Dia：0.1~1.2mm

Coil Dia：Max. 240/500/800mm

R.P.M.：Max. 2400rpm

Program Memory：Max.99 Sets

Specifications：

Operation Method：Ac Motor

Motor：3phase，0.4kw Or 0.75kw

Dimension：1300(L)×1050(W)×1200(H)Mm

Weight：250kgs

Function：

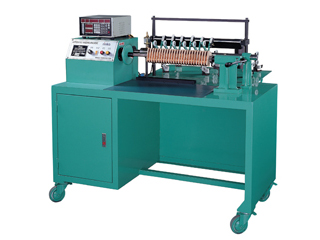

The winding machine is suitable for minimum winding 24 pcs of coils simultaneously. The feeding speed of wire arrangement can be selected simultaneously according to diameter of wire or any pre-set speed.

Features：

1. This machine is equipped with the programmable RISC Micro-Controller, it is very powerful, durable, stable and safety response for control procession.

2. A battery-free design is equipped for the interior memory system of microprocessor to avoid inconvenience of battery life limitation.

3. Feeding speed is adjustable automatically according to wire diameter.

4. The speed of main spindle can be adjusted continually.
