Application：

Manual Winding Machine

Stator I.D.：30~100 mm

Stack Height：Max. 80~100 mm

Specifications：

Operation Method：Pneumatic & Motor

Motor：Single Phase , 0.125 kw

Dimension：750(L)×600(W)×1200(H) mm

Weight：100 kgs

Function：

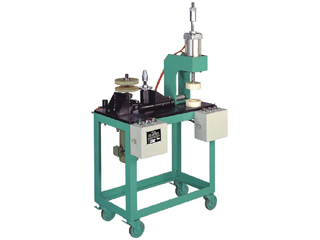

The machine is suitable for forming up the small to medium size stator coil, the operator puts the coil on left side roller to form up inner side of coil, then put the stator on right side forming mould to finally form up height, inner and outer side of coil to ensure the end product to meet the required specification.

Features：

1. Solid structure and compact design.

2. High speed, high reliability, quality output and perfect function.

3. Easy to adjust while changing stack height of stator
