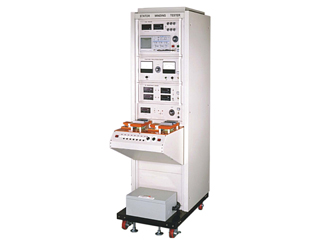

Power Source

3Æ AC 50/60Hz 220V±5% 5A or

3Æ AC 50/60Hz 380V±5% 5A

Output Voltage

0~3KV

Output Waveform

1.2μS ×40μS

Judgment

Two-Phase waveform on oscilloscope and GO/NG output of digit comparator.

Test Voltage

DC 500V

Measuring range

0~100MΩ

Measuring accuracy

±3% F.S.

Cut-off

Meter limit relay

Output Voltage

0~3KV (adjustable)

Capacity

500VA

Cut-off Current

0.5/1/2/5/10mA 5 range selection

Measurement method

Four-terminal method

Measuring range

0~999.9Ω (adjustable)

Accuracy

±0.2%±1 digit

Display digit

4 digit

including temperature compensation at 20℃

Exciting Voltage

AC 0~260V

Detection

electronic type (Rotor is not necessary)

Operation by manual or automatic:

1. By manual:

First of all, please select test item as you need.

Then, the result will appear.

2. By automatic:

Test procedure: Impulse test→Insulation Resistance test→

AC Puncture test→Winding Resistance test→Rotational Direction test。

Test will stop automatically and buzzer will alarm if any abnormality。

occurred during test. Test cycle is about 12~15sec/set.
