TOW-2241S:

Application:

Stator I.D.                    30~50 mm

Stack height      15~45 mm

Number of slots   4~18 poles

Winding speed  Max.3000 RPM (Min.)

Specifications

Driving method  Servo motor

Motor  1.5KW

Dimension       1000(L)×1266(W)×1215(H) mm

Function & Features

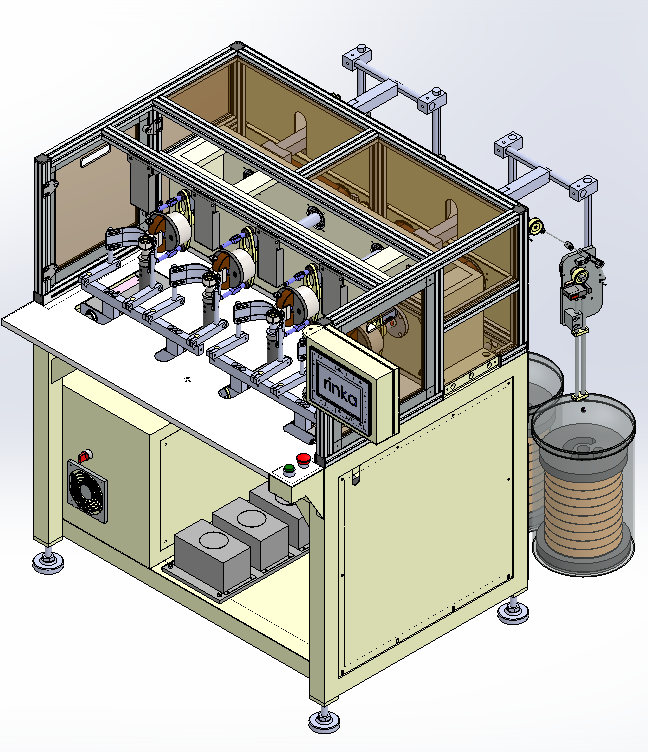

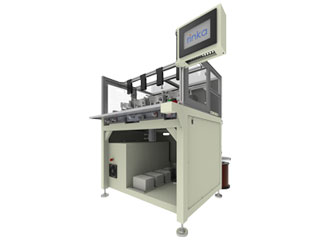

1.         Function: The machine with flying fork winding is suitable for small type stator. It has four spindle on one machine and operate at one time.

2.         Features：

a.          Easy adjustment while changing stack height of stator

b.         Easy to setting program while changing number of pole of stator

c.         99 sets program memory system
