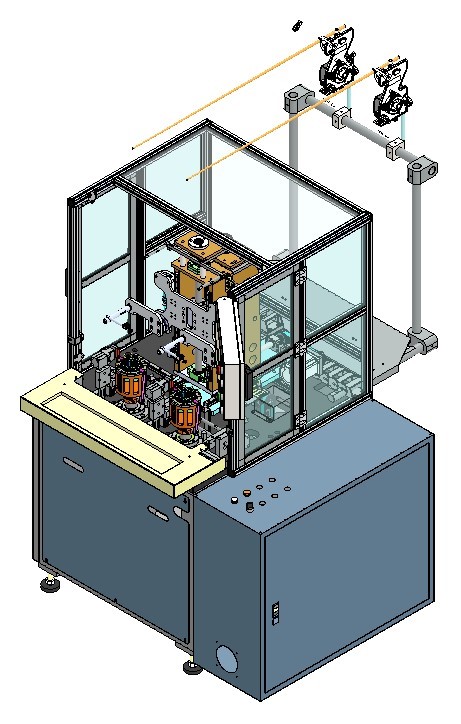

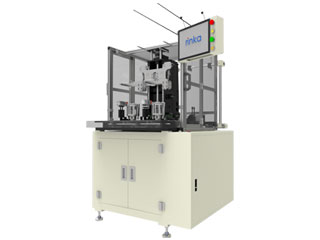

TOW-620  Inner winding machine

Spindle : Two spindles winding at one time

Available wire dia : 0.1 ～ 1.0 mm     (搭配不同張力器)

Stator OD. : max 110 mm

Stator Id : min 40 mm

Stator stack : max 60 mm

Winding speed : max 450 rpm ( depend on stator size & wire dia)

Number of slots : 4～12 slot

Driving method : servo motor

Dimension : 1370(L)x860(W)x1640(H)mm

Weight : 550 kg
