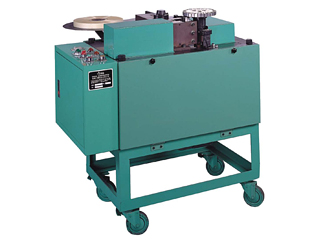

  • TOI-1200 CEILING FAN SLOT WEDGE INSERTING MACHINE
NameTOI-1200 CEILING FAN SLOT WEDGE INSERTING MACHINE


Information
Application:

Application

Stator O.DMax. 120~160 mm

Stack Height10~40 mm

Number Of Slots8~18 Poles



Specifications

Operation MethodAC Motor

Motor3phase 0.4 kw

Dimension900(L)×900(W)×1000(H) mm

Weight300 kgs



Function

This machine is specially designed for slot cell or wedge paper insertion of ceiling fan stators. All procedure actions are done by the machine automatically except to put on and take off stators. The complete inserting time for 16 poles stator can be shorten to 8 sec/ stator. The production cost will be highly reduced by decreasing the material loss and labor cost.



Features

1. High insertion speed is about 0.5 sec/slot for labor saving, cost reduction, and stable quality output.

2. Easy adjustment while changing stack height of stator or width of insulating paper.

3. Change tooling design to meet different shape of stator slots.
