  • Assembled Wire Roller/Ceramic Roller
NameAssembled Wire Roller/Ceramic Roller
Information
Guide Pulleys

Guide Pulleys

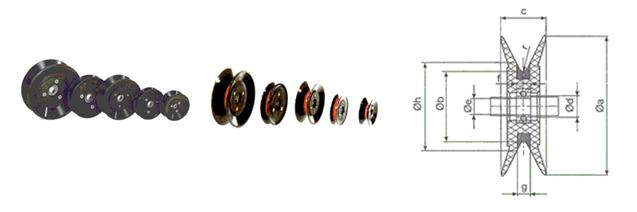

．Consist of a Ceramic Contact Ring Mounted on Tough, Reinforced Plastic Flanges. Each Pulley Comes with a Single Bearing.

．Wearproof, Heat Resistance, Smooth Rotating.

GUIDE PULLEYS

Dimensions／mm

Type

Overall Diam

Pitch Diam

Flange Width

Bore

Bearing Width

Radius

Ceramic Ring Width

Ceramic Ring O.D.

Art.-Nr.

Øa

Øb

c

Øe

f

r

g

Øh

UA1001

20,0

15,5

5,0

3,0

3,0

0,5

2,0

17,5

UA1002

30,0

20,5

6,0

4,0

4,0

1,0

2,5

22,5

UA1003

30,0

15,5

10,0

3,0

3,0

0,5

2,0

17,5

UA1004

40,0

20,0

14,5

4,0

4,0

1,0

2,5

22,5

UA1005

45,0

29,5

10,5

6,0

6,0

1,0

4,5

35,0

UA1006

60,0

41,5

12,5

8,0

7,0

1,0

4,2

45,0

UA1007

60,5

29,5

20,0

6,0

6,0

1,0

4,5

35,0

UA1008

80,0

50,0

16,5

10,0

9,0

2,0

7,5

60,5

UA1009

80,0

39,5

25,0

8,0

7,0

1,0

4,5

45,0

UA1010

100,0

50,0

29,0

10,0

9,0

2,0

8,0

60,5
