NameFiberglass Wheel
Information
Fiberglass Wheel

Fiberglass Wheel

描述: http://www.eraser.com/images/nc/1648.jpg

Description

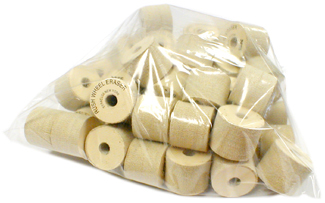

Note: This part number can be ordered in pairs at any quantity. Picture shown reflects 50 pair.



All of our FybRglass® Stripping Wheels are manufactured in house to ensure the highest standards of quality and delivery. We make stripping wheels to fit all competitive machines as well as for all Eraser Models. We can also manufacture custom size wheels.



There are many factors that determine the proper grade of FybRglass® wheel for a specific wire stripping application and these include: wire size, type of insulation, strip length, number of wires stripped at one time, etc. For this reason, we suggest you send a sample of your wire so we may test it in our laboratory to provide you with the most efficient and economical grade of wheel [send us a 3 foot (1m) sample of wire with strip length and number of wires to be stripped at one time].



Specifications

描述: http://www.eraser.com/images/nc/93.gif



Strips wire sizes

35-45 AWG (0.14-0.046mmø)

Grade

640 Fine

Outside Diameter

1 1/4" (32mm)

Width

1" (25mm)

Arbor Hole

.335" (8.5mm)

Compatible Models

D Series, Ecept D109
