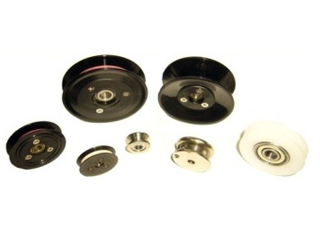

組合式陶瓷線輪
．加強塑膠法蘭，陶瓷內環及培林組成
．耐磨、耐溫、旋轉平順

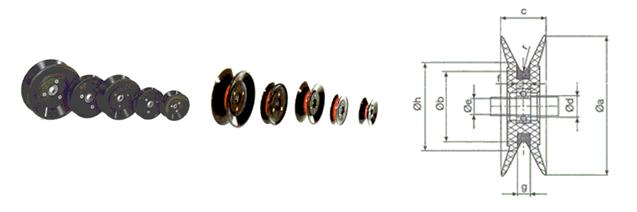

規格尺寸／mm
|
型號
|
外徑
|
根直徑
|
寬度
|
培林內徑
|
培林寬度
|
半徑
|
陶環寬度
|
陶環外徑
|
|
Art.-Nr.
|
Øa
|
Øb
|
c
|
Øe
|
f
|
r
|
g
|
Øh
|
|
UA1001
|
20,0
|
15,5
|
5,0
|
3,0
|
3,0
|
0,5
|
2,0
|
17,5
|
|
UA1002
|
30,0
|
20,5
|
6,0
|
4,0
|
4,0
|
1,0
|
2,5
|
22,5
|
|
UA1003
|
30,0
|
15,5
|
10,0
|
3,0
|
3,0
|
0,5
|
2,0
|
17,5
|
|
UA1004
|
40,0
|
20,0
|
14,5
|
4,0
|
4,0
|
1,0
|
2,5
|
22,5
|
|
UA1005
|
45,0
|
29,5
|
10,5
|
6,0
|
6,0
|
1,0
|
4,5
|
35,0
|
|
UA1006
|
60,0
|
41,5
|
12,5
|
8,0
|
7,0
|
1,0
|
4,2
|
45,0
|
|
UA1007
|
60,5
|
29,5
|
20,0
|
6,0
|
6,0
|
1,0
|
4,5
|
35,0
|
|
UA1008
|
80,0
|
50,0
|
16,5
|
10,0
|
9,0
|
2,0
|
7,5
|
60,5
|
|
UA1009
|
80,0
|
39,5
|
25,0
|
8,0
|
7,0
|
1,0
|
4,5
|
45,0
|
|
UA1010
|
100,0
|
50,0
|
29,0
|
10,0
|
9,0
|
2,0
|
8,0
|
60,5
|
|
